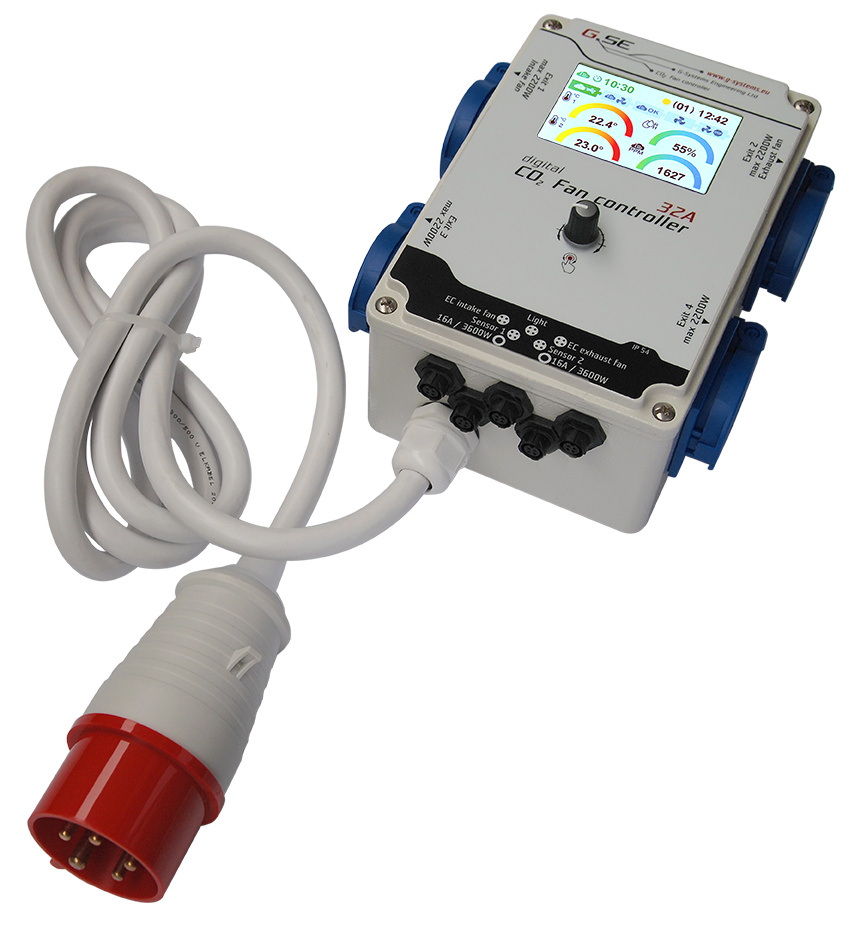

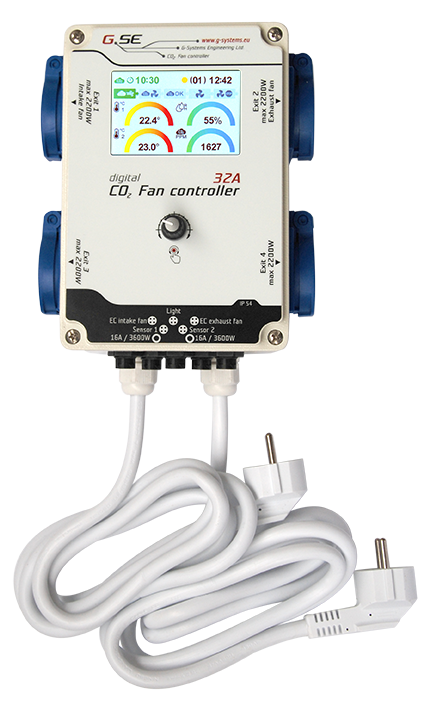

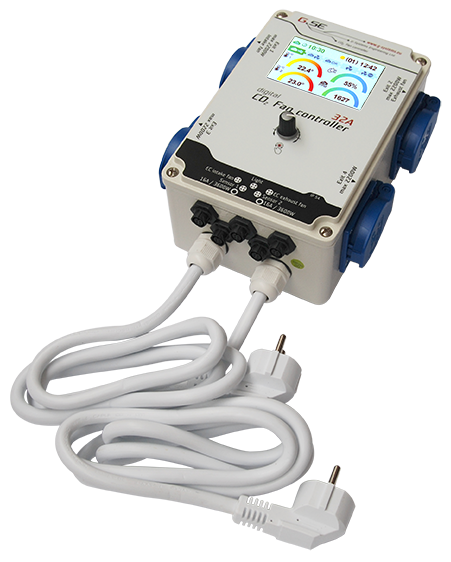

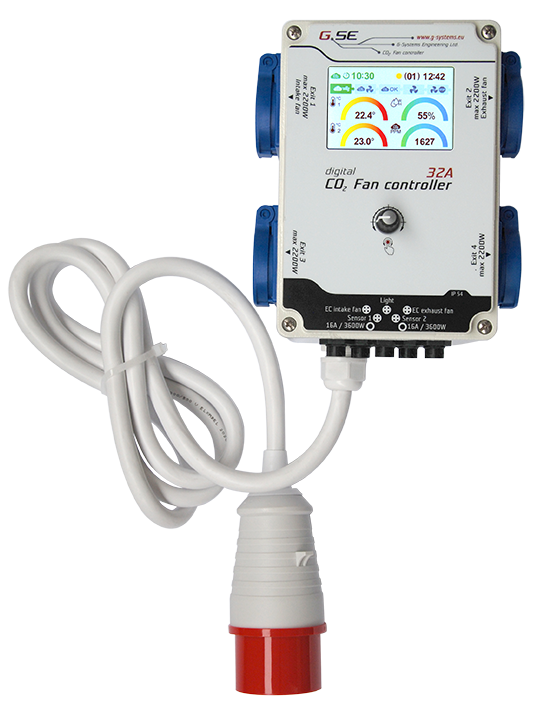

CO₂ Controller – The All-in-One Solution
for Climate, Lighting and Irrigation
Take
full control of your grow environment with the advanced CO₂
Controller. A powerful device that combines fan, light and climate
control, irrigation, and many additional functions such as heating,
cooling, humidifying and dehumidifying. Designed for maximum
reliability and long-term durability, it delivers professional
results harvest after harvest.
Robust and durable
design
Solid aluminum housing (IP54) with waterproof
click-connectors for optimal protection in demanding grow
environments.

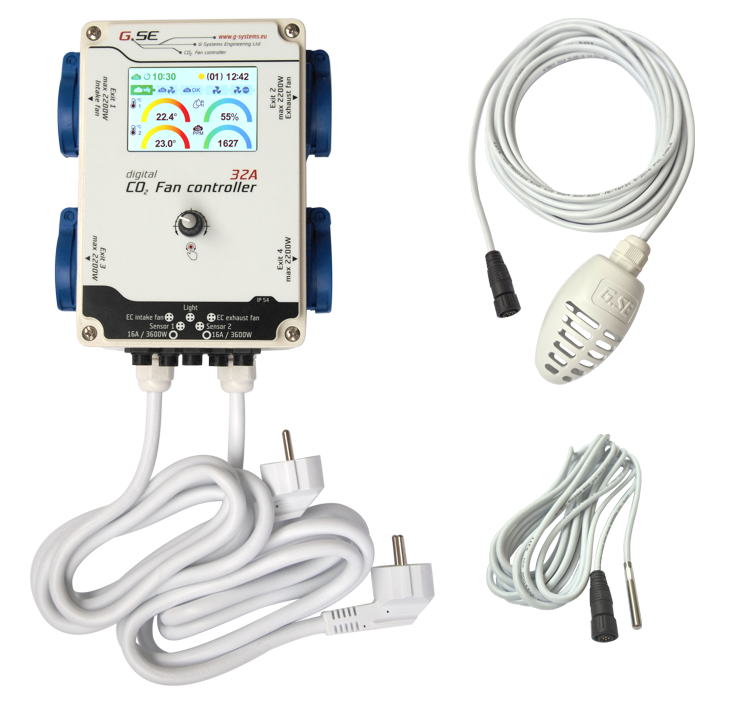

Complete sensor package
Monitors
CO₂ levels, air temperature, humidity, light intensity and includes
a waterproof temperature sensor for liquids or harsh conditions.
4
individually programmable outputs
Configurable for
heating, cooling, humidifying, dehumidifying, timer functions or
direct connection of a CO₂ solenoid valve for precise
dosing.
Powerful 32A model
Includes two
variable AC fan outputs and two EC outputs (0–5V, 0–10V or PWM
signal) for maximum flexibility.
Light
controller
Integrated 0–10V or PWM signal ensures
smooth dimming and full compatibility with dimmable grow lights.
Includes temperature-based dimming, sunrise/sunset simulation and
emergency shut-off.
Smart CO₂ management
Automatic
daytime CO₂ dosing with customizable conditions. Designed to work
with or without air conditioning.
IoT ready (from
Version 2.0)
Equipped with a built-in Wi-Fi ESP32 module
for seamless IoT integration. Ready for cloud services, remote
monitoring and firmware updates. Supports TCP/IP REST API, MQTT and
Matter.
Ideal for cannabis clubs, professional grow rooms and
all environments requiring high precision and reliability.
Watch
tutorial on YouTube: (English)
Dimensions and
Technical Specifications
Housing: 120×180×80mm
(W×H×D)
Controller: 150×210×110mm (W×H×D)
Power Supply:
230V / 50Hz
Maximum Load:
• 2 outputs at 16A, 230V
(each up to approx. 3680W)
• Total load capacity: up to approx.
7360W
Weight: 3.3kg
CO₂, Humidity and
Temperature Sensor:
• Operating voltage: 5V
• CO₂
measurement range: 400–5000ppm
• CO₂ accuracy: ±(40ppm + 5%
of reading)
• Temperature range: −10°C to +60°C
•
Temperature accuracy: ±0.8°C
• Humidity accuracy: ±5%
rH
External Temperature Sensor (DS18B20):
•
Operating voltage: 3–5.5V
• Measurement range: −55°C to
+125°C
• Temperature accuracy: ±0.5°C within −10°C to
+85°C
• Resolution: 9–12 bit
Protection
Rating: IP54
