  2. PIR detector

AS22

PIR detector

Available Unit(s) 365
Estimated production time -

    19.90 € 19.90 € 19.900000000000002 EUR

    16.58 €

    Option not available

    This combination does not exist.

    Checkout Add to cart
    Discounts
    2% discount on payments in advance

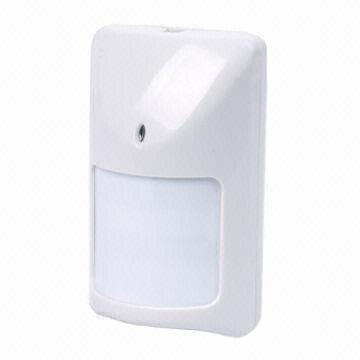

    Passive infrared detector or Motion sensor for alarm systems.

    Features:
    Fireproof ABS housing
    LED ON/OFF optional
    Automatic temperature compensation
    SMT adopted, anti-RFI & anti-EMI
    Pulse count optional
    Alarm output N.C./ N.O. optional

    Technical parameters:
    - Consumption current: less than 30mA(DC12V);
    - Maximum alarm voltage and current 28VDC/0.15A;
    - Detection speed: 0.2 m/s to 3 m/s (0.6 ft/s to 9.8 ft/s);
    - Working temperature: 0 ° C to 60 ° C,
    - Humidity ≤ 85% RH (non-condensing).
    - Storage: Temperatures: -10°C and 60°C, humidity of 20% to 95% (non-condensing)
    - Compatibility: normal and digital
    - Dimension: 89*52.5*38.5mm
