EB600-EU/FR-4m

Electronic ballast 250-660W HPS/MH

Available Unit(s) 271
Estimated production time -
  • Socket
  • Lamp cable
* public price

119.00 € 119.00 € 119.0 EUR

99.17 €

Option not available

This combination does not exist.

Checkout Add to cart
Discounts
2% discount on payments in advance

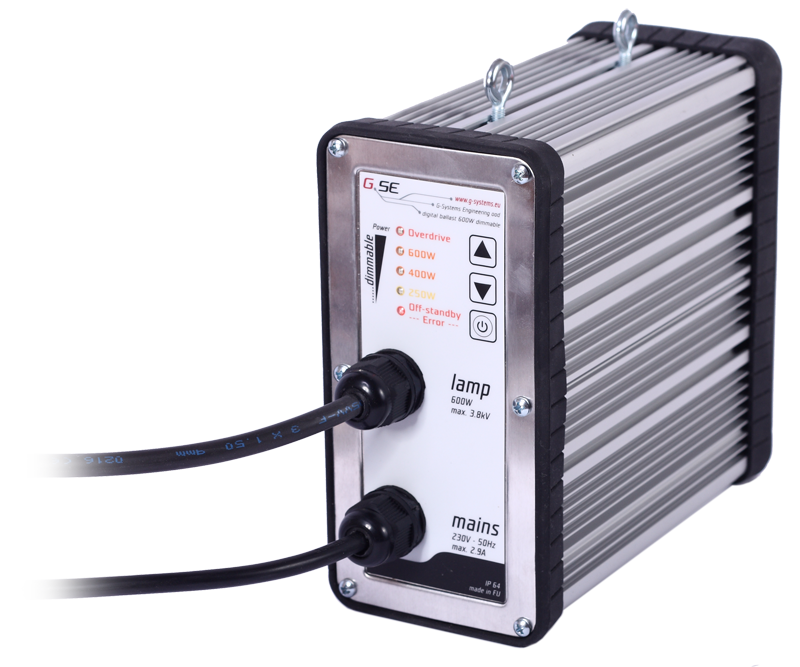

The GSE electronic ballast can manage all kind of MH metal-halide and HPS high pressure sodium bulbs at 250-400-600W. A UV- acid- and waterproof foil build in LED indicate the status and on 3knobs you can change the wattage. By steps from 660W-600W-400W-250W or with push and hold even step less from 660W to 250W. GSE uses only finest high quality components such as aluminum casted long live and high temperature electrolytic capacitor, transistors PhilipsNXP, high frequency ISKRA components etc... and source >84% EU manufactured components. A extremely big-surface aluminum radiator keeps the running temperature low and provides a long life of the components. The high frequency above 80kHz to 220kHz avoids acoustic resonance of the bulb.

The ballast comes as a finish assembled product with 3m connector cable and 4m lamp cable to connect to the reflector E40. It is all waterproof sealed and have IP64 protection class.

Watch tutorial on YouTube:

Features:
-Starts 250W, 400W, 600W, HPS and MH lamps
-Overdrive +10% output power
-Soft start technology low current
-Hot lamp protection
-Infinitely variable control
-Cool down dimming protection
-High efficiency >0.96
-LED status light diagnostic
-Stand by mode
-IP64 water proof
-Up to 3 years direct warranty


Sizes and technical data's:

WxHxD = 80x170x230mm
Weight: 2.9kg
Designed for: 250W, 400W, 600W, HPS and MH lamps
Watt: 730W
Volts: 230V / 50HZ
Protection class: IP64


Umax 230V 50Hz
Pmax 3.5A
IPclas 64
VAmax 920W
