SP21-4

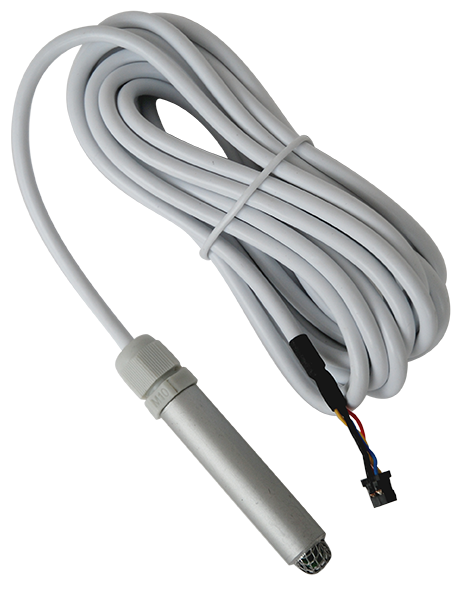

Humidity & temperature sensor

Available Unit(s) 493
Estimated production time -
  • Cable lenght
* public price

49.00 € 49.00 € 49.0 EUR

40.83 €

Option not available

This combination does not exist.

Checkout Add to cart
Discounts
2% discount on payments in advance

This humidity and temperature sensor you can find in products produced after 2015

Humidity operating range RH 0 to 100 %RH
Temperature operating range Ta -40 to +125°C
Humidity accuracy : +/-3%RH max tolerance @55%RH

Spare part for:
FC04 Humidity & temp. step transformer controller
FC12 Humidity, temperature and Negative pressure controller
ED61 Humidifier-dehumidifier (Hygrometer)
ED11 EC fan 125mm LCD 800m³/h
ED12 EC fan 160mm LCD 1'180m³/h
ED13 EC fan 250mm LCD 1'450m³/h


Position of the cables:
red = VCC
black = GND
blue = clock
yellow = data
