FC13-210EU

LCD fan controller

Available Unit(s) 15
Estimated production time -
  • Voltage
  • Socket
  • Amperage
  • OEM
  • AC-EC
* public price

249.00 € 249.00 € 249.0 EUR

207.50 €

Option not available

This combination does not exist.

Checkout Add to cart
Discounts
Discounts
2% discount on payments in advance

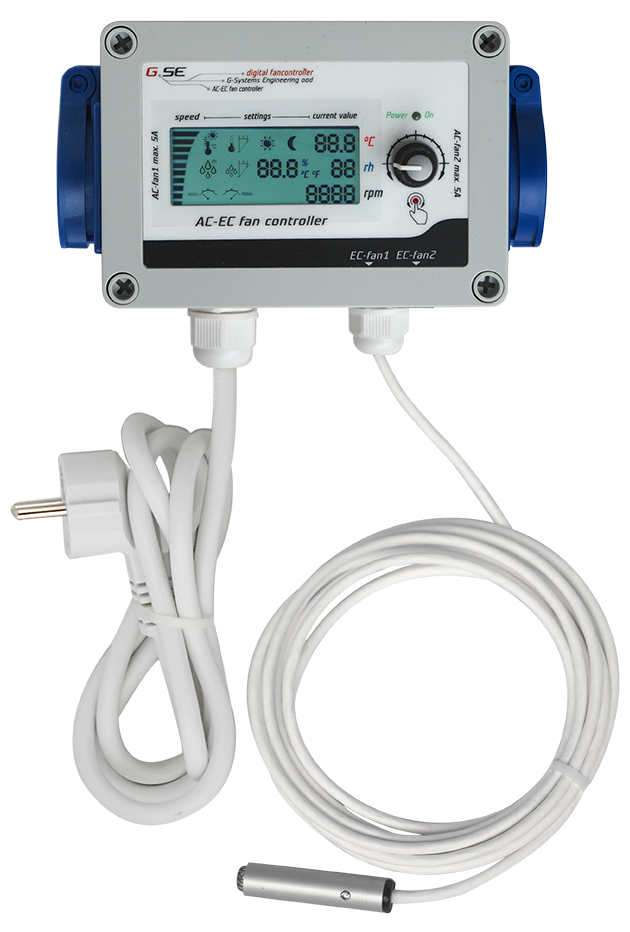

This LCD fan controller with built-in display and a rotary push button, provides a very quick and easy setting and reading of all information supplied by the controller for the intake- and exhaust air fan. It shows the temperature, humidity and speed RPM rounds per minute of the EC exhaust fan. A built-in light sensor detects day / night mods. Two 5A / 230V AC outlets for supply and extract air fan, meanwhile you have two RJ45 EC ports and you can choose between 0-10V or PWM (Pulse Wide Modulation) signal.

Two internal temperature sensors prevent overheating on heat-sink and processor parts. However should overheating occur, the variable control shuts off and a safety relay bypasses the extract air fan while the supply air fan is turned off. The controller thus prevents a total failure of the ventilation and protects your plants.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable. The controller is supplied with a 1.5m power cord and a 4 meter sensor cable. This can be extended up to 10 meters if required.

Watch tutorial on YouTube: (English) (Spanish)

Features:
-Temperature day
-Temperature hysteresis day
-Humidity day
-Humidity hysteresis day
-Minimum speed day
-Maximum speed day
-Temperature night
-Temperature hysteresis night
-Humidity night
-Humidity hysteresis night
-Minimum speed night
-Maximum speed night
-Negative pressure setting
-Switch light sensor level
-Switch over time day/night

LCD display:
-Graphic and digital display of speed rpm constant
-Temperature display constant
-Humidity display constant
-Set point select able not constant, over input keys

Sizes and technical data's:
Case: WxHxD = 130x92x105mm
Controller: WxHxD = 160x130x105mm
Designed for: 10A / 2x1'150W / TRIAC 2x16A
Volts: 230V / 50HZ
Digital sensor    5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Humidity accuracy +/-3%RH max tolerance @55%RH
Protection class IP54

Settings range:
Temperature: 15C° to 35C°, Hyst. 1 to 5C°
Humidity setting: 0-100%, Hyst. 1 to 20%
Minimum speed: off, 1% to 100%
Maximum speed: 10% to 100%
Negative pressure: 0% to -50%

Imax 10.0A
VAmax 2300W
Umax 230V 50Hz
IP class 54
