FC07-202EU

Pressure controller

Available Unit(s) 1
Estimated production time -
  • Voltage
  • Socket
  • Amperage
* public price

299.00 € 299.00 € 299.0 EUR

249.17 €

Option not available

This combination does not exist.

Checkout Add to cart
Discounts
2% discount on payments in advance

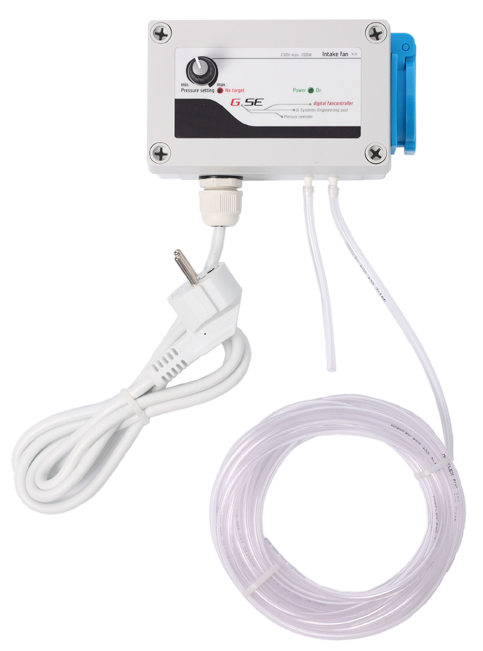

The pressure controller is a pressure depending speed controller for ventilated rooms with supply-air fan. The pressure controller keeps the set pressure difference constant independent of the extract- air fan and them control unit. The controller prevents overpressure and avoid odours escaping through slits, gaps and smallest openings. The pressure difference get set on one button. Two LED's are indicating function and fault diagnosis.

The controller is supplied as a unit and is ready for use. The unit comes complete in a waterproof housing, with compatible mains sockets with hinged lids and 6m measurement air pipe, which makes it the perfect controller for humid rooms.

Sizes and technical data:
Housing: WxHxD = 130x80x70mm
Fan controller: WxHxD = 160x100x90mm
Designed for: 200W
Voltage: 230V / 50Hz
Protection class: IP54

Pmax 2.0A
Umax 230V 50Hz
VAmax 460W
IP class 54
