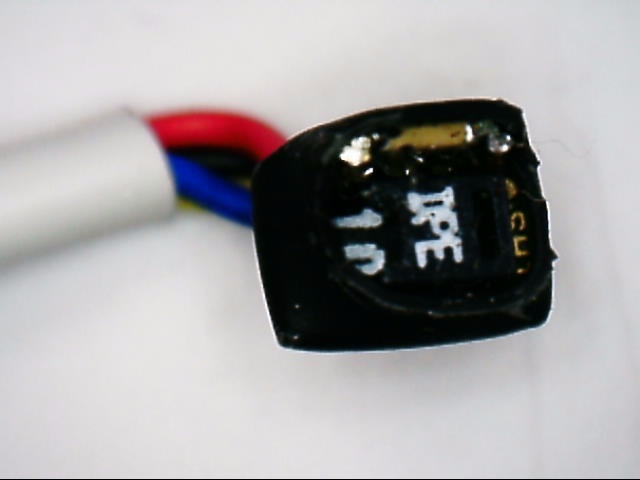

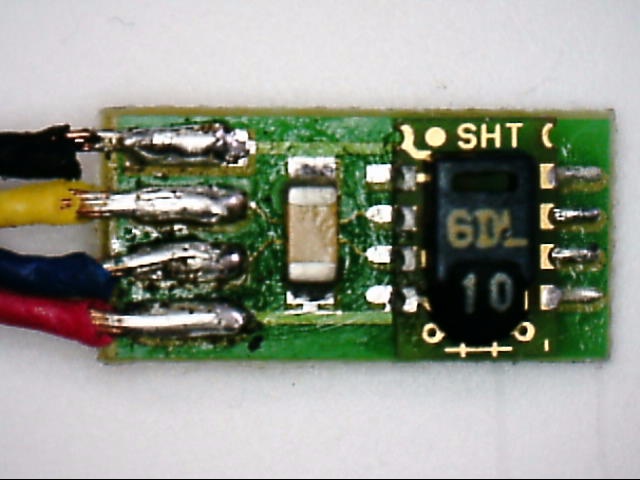

Old sensor was produced from 2007 to 2015, please check carefully the inside live and compare with your sensor!
Technical data:
Digital sensor 5V measures temperatures from –55°C to +125°C
(–67°F to +257°F)
0.5°C accuracy from –10°C to
+85°C
humidity accuracy ±4.5%rh
Spare part for:
FC04 Humidity & temp. step
transformer controller
FC12 Humidity, temperature and Negative
pressure controller
ED61 Humidifier-dehumidifier 8A (Hygrometer)

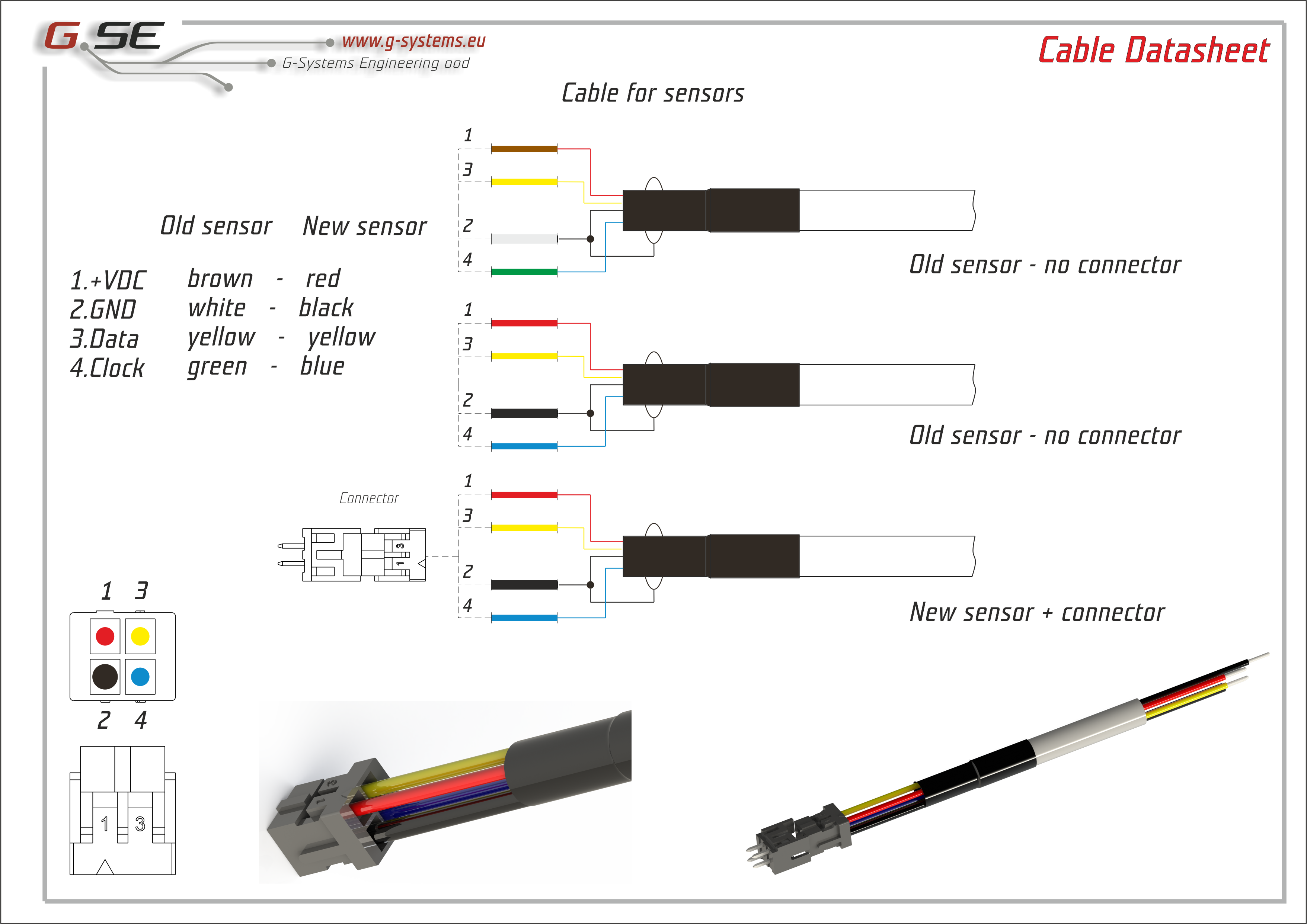

Position of the cables:
+VDC = red or
brown
GND = black or white
Data =yellow
Clock CLK = blue or
green
