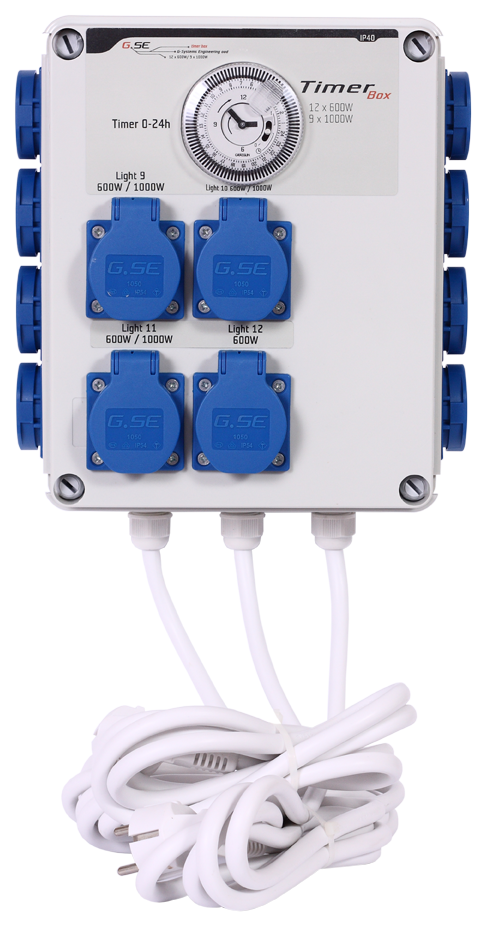

The timer box is used by several inductive loads such as high-pressure lamps with high switch on and off simultaneously. This turns on contactor/relay 12x600W loads. Model with heating socket is on when lights are off (power management). A thick 2.5mm² power cable keeps low cable temperature over 12-18h run-time.
A chargeable battery in the timer allows to run the timer for 36h without power-grid, GSE strictly recommend to keep the battery charged min. once a year. The battery have a restricted warranty of 14months from the date of the production from GRÄSSLIN! On all other components 24/36months after sales. The mechanical timer (GRÄSSLIN) has a return rate of 2%, we recommend using the Timer Box IV with a return rate of less than 0.5%.
Watch tutorial on YouTube: (English) (German) (French) (Spanish) (Italian) (Czech) (Polish)Sizes and technical data's:
Case: WxHxD = 200x255x95mm
Timer box: WxHxD = 230x300x110mm
3 Pole incl. connector 3x16A (EU) 12x600W
3 Pole incl. connector 3x13A (CH, UK) 12x600W
5 Pole CEE16 3x16A 12x600W
Volt: 230V / 50Hz
24h timer with 36h power reserve 30min. setting
Contactor: 4x16A 230V
Protection class: IP40
| VAmax | 11040W |
|---|---|
| IP class | 20 |
| Umax | 230V 50Hz |
| Imax | 48.0A |
