Timer Box II 8x600W (Grässlin Timer)

Available Unit(s) 0
Estimated production time -
  • Voltage
  • Socket
  • Amperage
  • Heating
* public price

179.00 € 179.00 € 179.0 EUR

149.17 €

Option not available

This combination does not exist.

Checkout Add to cart
2% discount on payments in advance

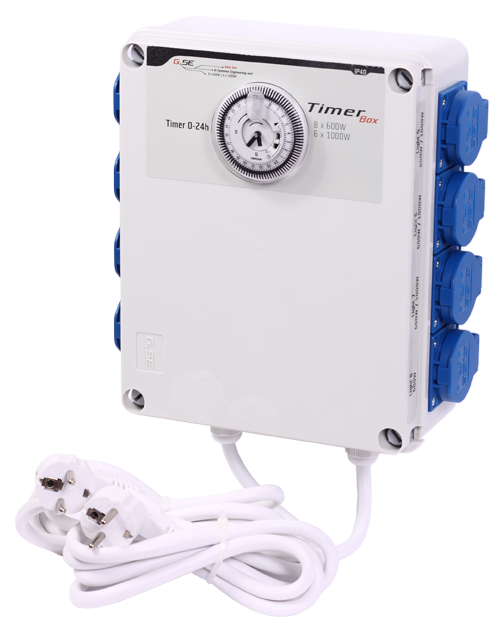

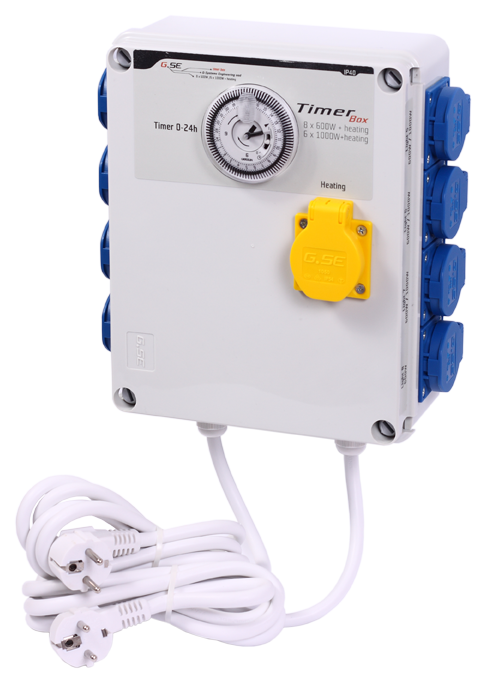

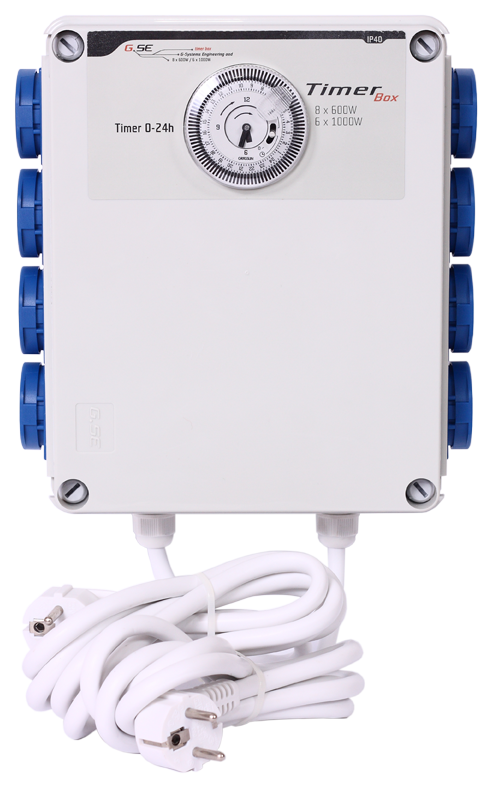

The timer box is used by several inductive loads such as high-pressure lamps with high switch on and off simultaneously. This turns on contactor/relay 8x600W loads. Model with heating socket is on when lights are off (power management). A thick 2.5mm² power cable keeps low cable temperature over 12-18h run-time.

A chargeable battery in the timer allows to run the timer for 36h without power-grid, GSE strictly recommend to keep the battery charged min. once a year. The battery have a restricted warranty of 14months from the date of the production from GRÄSSLIN! On all other components 24/36months after sales. The mechanical timer (GRÄSSLIN) has a return rate of 2%, we recommend using the Timer Box IV with a return rate of less than 0.5%.

Watch tutorial on YouTube: (English)   (German)   (French)   (Spanish)   (Italian)   (Czech)   (Polish)

Sizes and technical data's:
Case: WxHxD = 200x255x95mm
Timer box: WxHxD = 230x300x110mm
2 Pole incl. connector 2x16A (EU) 8x600W
2 Pole incl. connector 2x13A (CH, UK) 8x600W
Volt: 230V / 50Hz
24h timer with 36h power reserve 30min. setting
Contactor: 4x16A 230V
Protection class: IP40

IP class 20
Umax 230V 50Hz
Imax 32A
VAmax 7360W
