LC01EU-Wi-No

Light controller 2channel (V1.60)

Available Unit(s) 0
Estimated production time 1.0 day(s)
  • Power adapter
  • Lamp connector
  • Channel B sensor + cable
* public price

139.00 € 139.00 € 139.0 EUR

107.50 €

Option not available

This combination does not exist.

Checkout Add to cart
Discounts
Discounts
2% discount on payments in advance

This light controller with a 2x16 character display covers all basic needs. It has a keyboard with 4push buttons, UP, DOWN, ENTER, Save/Escape.

Functions:
Start/Stop by time, reduce power according to the room temperature, minimum and maximum dimming range,  emergency stop when the room gets to hot accompanied with a recovery temperature, restart delay for HPS and MH lamps to not start under hot bulb condition. There are sunrise and sunset functions. In the sub settings you can choose the LCD back-light behavior set current time with 24h format, stet output signal from 0-10V or PWM (pulse width modulation), change °C to °F and languages. The light controller have 2 individual channels for 2 separate rooms.

The device comes with a 4m long temperature cable for one channel. An adapter allows to split the output signal to several connectors, terminal block, RJ11 (for several brands, more will follow). Screws and dowel for wall mounting.

How many lamps can you connect?
Depending on the lamps you have, we provide a 50mA output signal per channel, which should be able to connect at least >50 to endless lights working with 0-10V signal. If the light offers a PWM input the cable length and amount of lights >1'000

Watch tutorial on YouTube: (English)

Features:
Time & Date
Day counter
Dim by temperature
Settings of the dimming range
Shut down by temperature
Restart delay
Sunrise
Sunset
0-10V or PWM signal
Temperature offset (calibration)
Temperature °C or °F
Back-light setting
Language settings; English, Spanish Italian, German and French

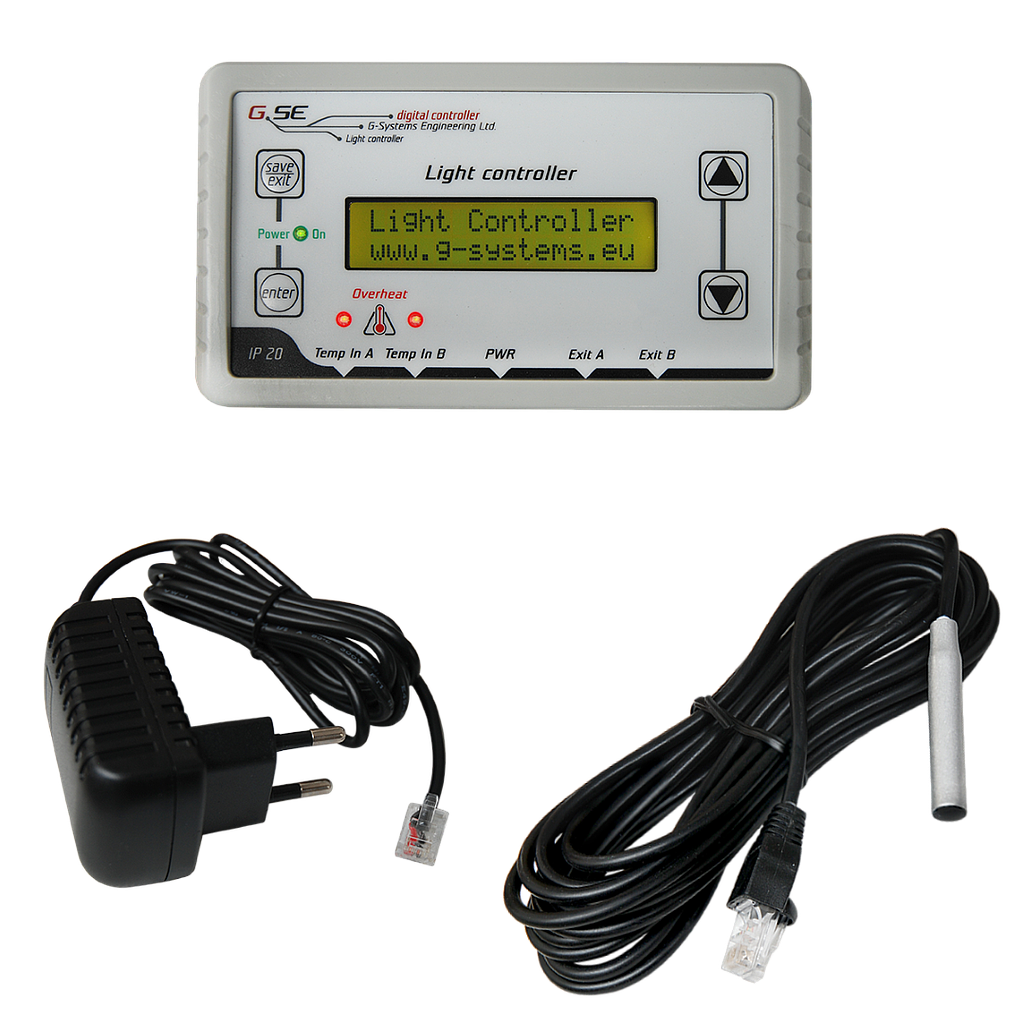

Packing contains:
1x Light controller
1x Temperature sensor
1x Mounting screws & dowel
1x User manual
1x Power supply (depending on the variant)

Is the power supply required?
If the LED driver/ballast provide 2wire Signal-GND then yes,
Ii the LED driver/ballast provide 3wire Signal-GND-VDC >10V there is no power supply required.

Not included in the packing is the ballast/LED cable which connects with a RJ45 connector on the light controller side. Usually this is provided by the lamp or you can buy this in any electro domestic or computer shop.

Technical data:
Size: WxHxD = 140x75x35mm
Weight: 375g
Power supply 12VDC 100mA
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class IP20

Settings range:
