FC01-210EU-AC

Temperature minspeed controller

Available Unit(s) 151
Estimated production time -
  • Voltage
  • Socket
  • Amperage
  • AC-EC
* public price

99.00 € 99.00 € 99.0 EUR

82.50 €

Option not available

This combination don't get produced anymore!

Checkout Add to cart
Discounts
Discounts
2% discount on payments in advance

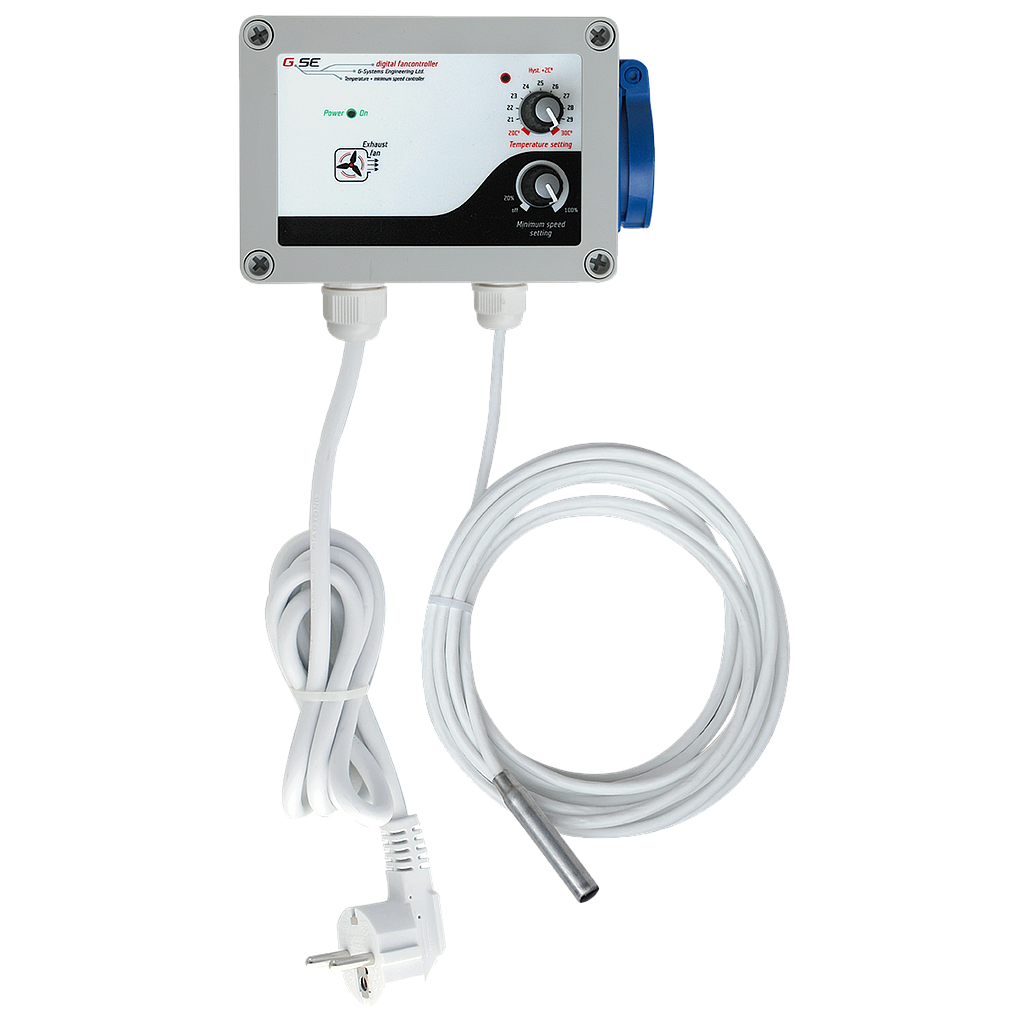

The minimum speed controller is a temperature depended speed controller for ventilated rooms with one ore more fans. The minimum speed controller keeps the temperature constantly and impedes to run under the set minimum-speed. It can be easily controlled, adjusting the required temperature and the minimum speed on two knobs.


The variant with RJ45 connector is offering you 0-10V or PWM (pulse width modulation) signal for EC fans.


Two internal temperature sensors prevent overheating on heat-sink and processor parts. However should overheating occur, the variable control shuts off and a safety relay bypasses the extract air fan while the supply air fan is turned off. The controller thus prevents a total failure of the ventilation and protects your plants.


The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable. The controller is supplied with a 1.5m power cord and a 4 meter sensor cable. This can be extended up to 10 meters if required.


Watch tutorial on YouTube: (English)

Sizes and technical data's:
Case: WxHxD = 130x92x105mm
Controller: WxHxD = 160x130x105mm
Designed for: 10A / 2300W / TRIAC 1x16A
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class: IP54

Settings range:
Temperature: 20C° to -30C°
Minimum speed: off, 20% to -100%


Pmax 10A
VAmax 2300W
Umax 230V 50Hz
IP class 54
249.00 € 249.00 € 249.0 EUR
159.00 € 159.00 € 159.0 EUR
69.00 € 69.00 € 69.0 EUR
139.00 € 139.00 € 139.0 EUR
Accessory Products:
24.90 € 24.90 € 24.900000000000002 EUR
