SD42-230EU

Timer Box IV 12sockets + heating

Available Unit(s) 12
Estimated production time -
  • Voltage
  • Socket
  • Amperage
* public price

229.00 € 229.00 € 229.0 EUR

182.50 €

Option not available

This combination don't get produced anymore!

Checkout Add to cart
Discounts
2% discount on payments in advance

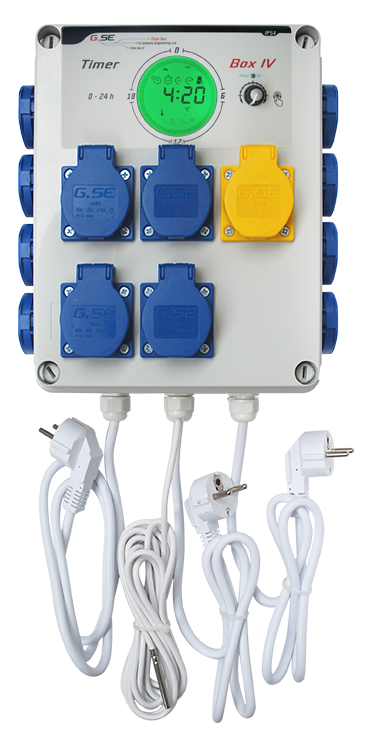

The timer box is used to switch several inductive loads such as high-pressure vapour lamps with a high inrush current to switch ON and OFF at the same time. The timer box 4 has a digital display that is based on a 24 hour mechanical timer. With an encoder button left-right and press, It's an easy way setting the clock even faster than a mechanical timer. 48 segments show current time, the programmed duration, the day counter as the room temperature at a glance.

The clock has a 12h or 18h cycle preprogrammed, a user-defined time hours/minutes can be set. The clock has a day counter and a temperature probe for an emergency stop in case of overheating to protect your plants. The Power LED will indicate an emergency stop after your later return. In addition to the on-off function especially for inductive loads, the Timer Box 4 has a 0-10V or PWM output for dimmable e-ballasts or LED lamps. This signal dims the lamps when the temperature rises, or functions such as sunrise/sunset are possible. When the lamps are switched off, a heating socket is switched on. (Power management).

There are two ways to switch the current state manually to ON/OFF . First infinitive for ever, the second until the next cycle. This will avoid forgetting to return the time to automatic mode when you leave the Growroom and do some damage to your plants.

In case of a power loss, an internal battery will keep all your settings and the current time. (Battery life time of 10 years)

The timer box comes as a finished part and is ready to use. This reliable switch box comes complete with a sealed IP54 cover (Protection class offers protection against splashing water from all sides), plugs with flap-lids and a low voltage temperature sensor making it perfect for wet rooms. The controller is supplied with three 1.2m power cord 230V (or one 2m 3phase power cord 400V) and a 4 meter sensor cable. This can be extended up to 10 meters if required.

Watch tutorial on YouTube: (English)

Features:
- 1 channel 24h timer
- Green dimmable display
- Designed for inductive loads
- 0-10V or PWM output.
- Temperature display
- Emergency stop temperature monitoring
- Dimming
- Sunrise sunset
- Day counter
- Time format 0-24h or 12 AM/PM
- Temperature format ° C or ° F
- Heating release when the light is off


Technical specifications:
Housing: WxHxD = 200x255x95mm
Timer box: WxHxD = 230x300x110mm
3 pole 3x10A 6'900W
3 pole 3x16A 11'000W CEE16A
Volt: 230V / 50Hz
Protection class: IP54

Umax 230V
Pmax 30A
