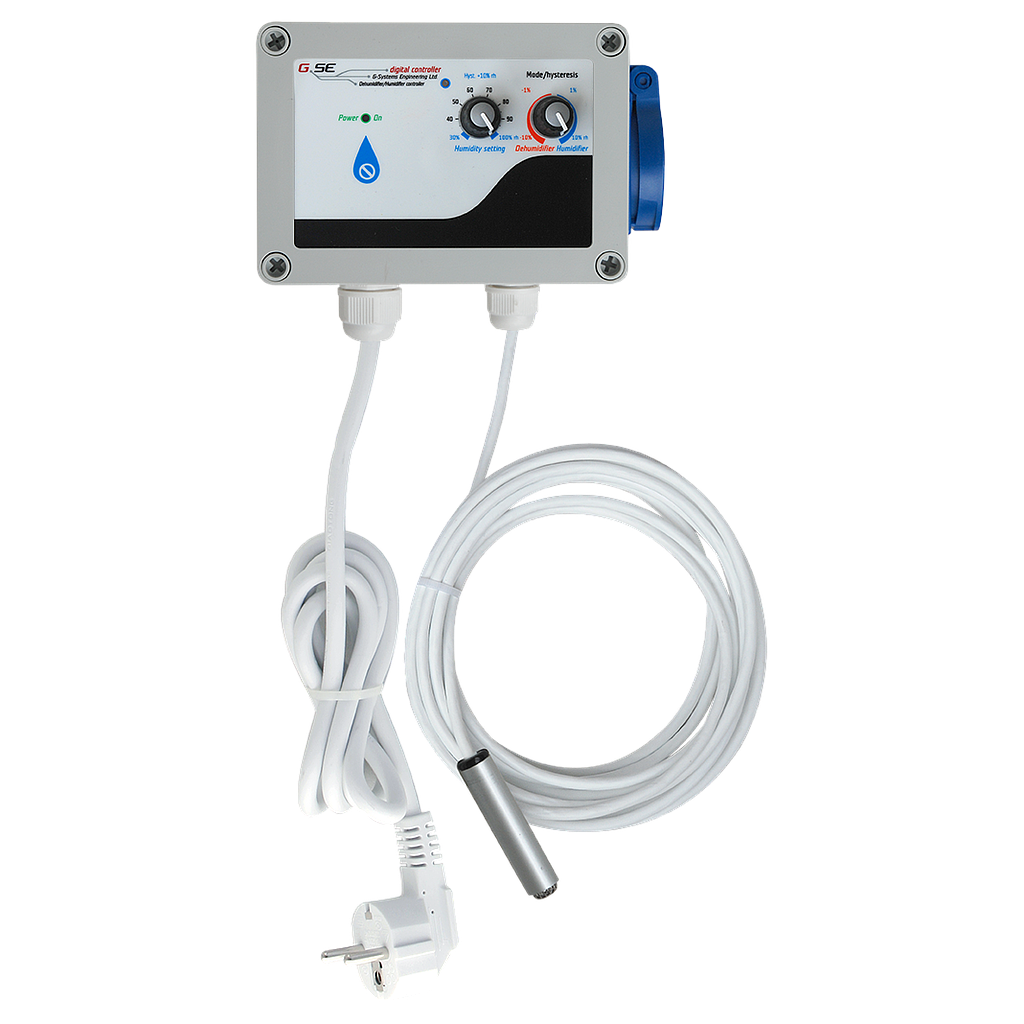

The humidifier regulator serves rooms under constant humidity to keep their humidity stable.
The unit is connected between a humidification (fogger) or de-humidification unit and the mains. There are two rotary controls for setting the desired constant humidity and the consumer type (humidifier/dehumidifier), on which the hysteresis can also be set.
The controller comes as a finished part and is ready to use. This reliable controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable. The controller is supplied with a 1.5m power cord and a 4 meter sensor cable. This can be extended up to 10 meters if required.
Watch tutorial on YouTube: (English new version) (German) (French) (Spanish) (Italian) (Czech) (Polish)
Humidity: 30% to 100%
Hysteresis: dehumidifier -10% to -1% and humidifier +1% to +10%
The Sensor can not be directly exposed into water or aerosols!
Sizes and technical data:
Housing: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Power requirements: (Mains) Voltage: 230V/50Hz, 10Amp (3A inductive)
Digital Sensor: 5V Measures temperatures from -55 ° C to +125 ° C
(-67 ° F to +257 ° F) 0.5 ° C accuracy from -10 ° c to +85 ° C
Humidity accuracy +/-3%RH max tolerance @55%RH
Protection class: IP54
